TECHNOLOGY

POSMAC SOLAR PRODUCTS

COMPOSITION AND ASSEMBLY DRAWINGS

Masonry enclosures

Fixing process

고정과정1

Draw a baseline and anchor the bracket to secure the profile with an anchor bolt.

고정과정2

Fasten the standard horizontal material with a fastener and a dedicated bolt. (Depending on the site, the leveling may not be installed.)

고정과정3

Set up the vertical material and secure it with an anchor bolt and bracket spaced from 1m to 1.5m.

고정과정4

Cross horizontal + vertical pro- files and assemble with dedicat- ed bolts on perforated surfaces and fasten masonry or enclosure to the profiles.

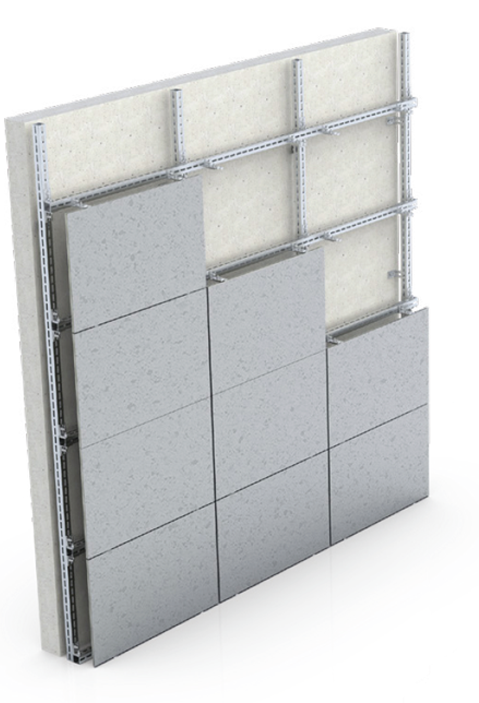

Construction image
Construction image

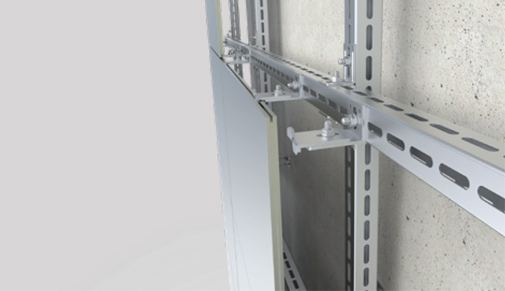

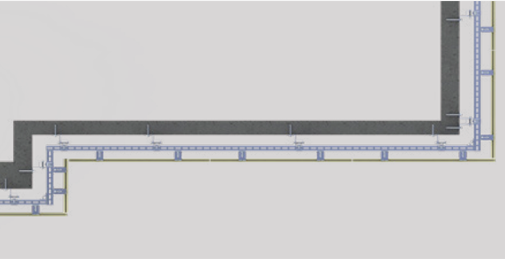

Masonry enclosure construction surface
Masonry enclosure construction surface
Masonry enclosure construction surface
Masonry enclosure construction surface

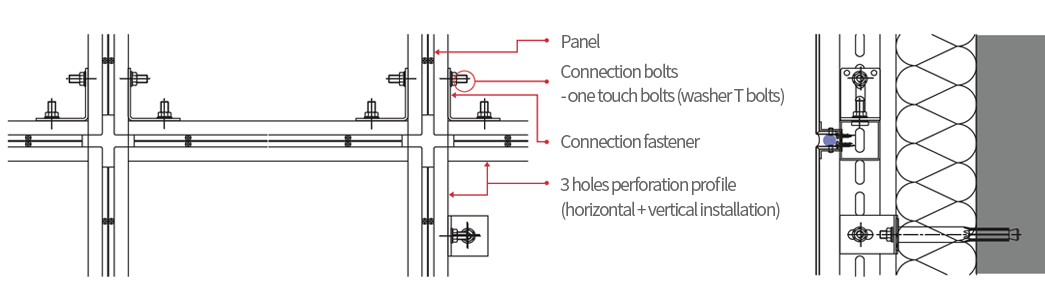

Metallic (panel) enclosure

Composition and structure
Metallic (panel) enclosure

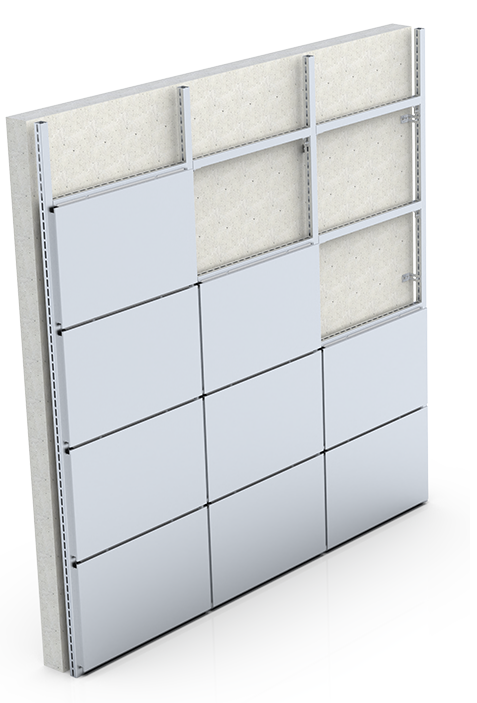

Construction images
Construction images

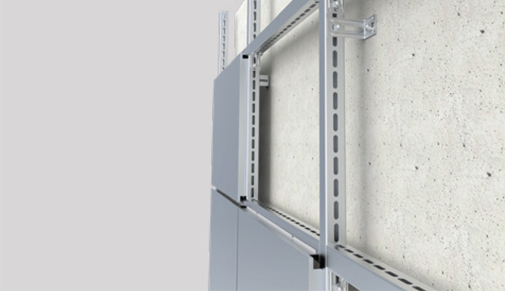

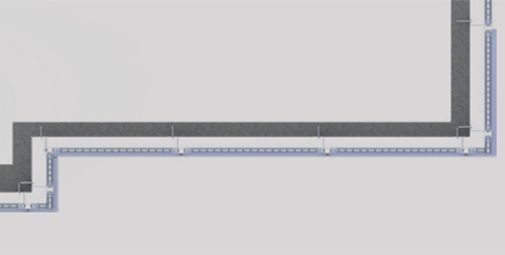

Construction side of metal (panel) enclosure
Construction side of metal (panel) enclosure
Construction side of metal (panel) enclosure
Construction side of metal (panel) enclosure

MASONRY ENCLOSURE ASSEMBLY DRAWINGS

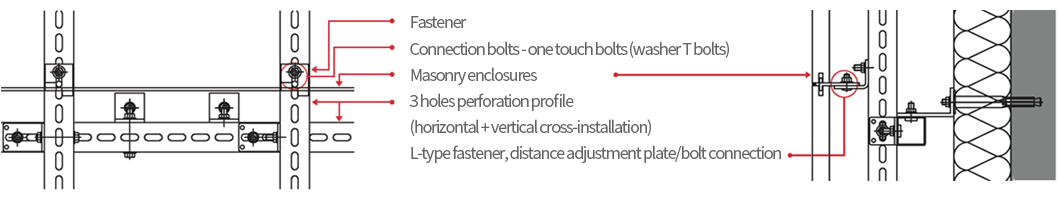

When fixing the vertical profile of the masonry enclosure
(when using horizontal + vertical)

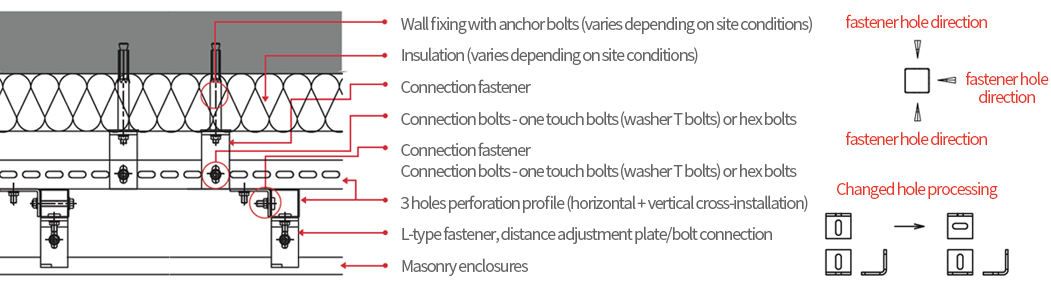

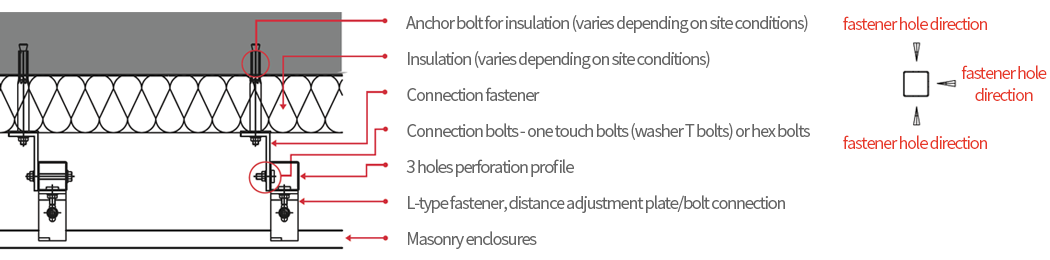

Sectional View
Sectional View

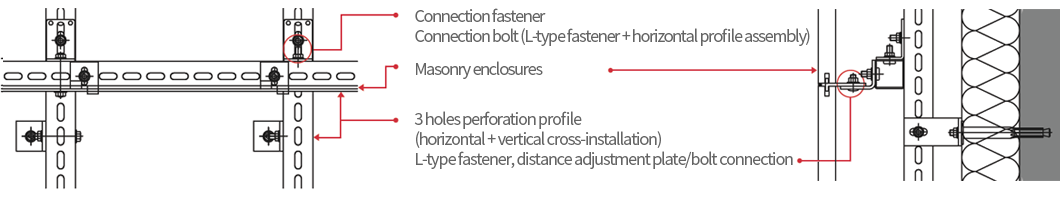

Front and
side views
Front and side views

When fixing the horizontal profile of the masonry enclosure
(when using horizontal + cross horizontal)

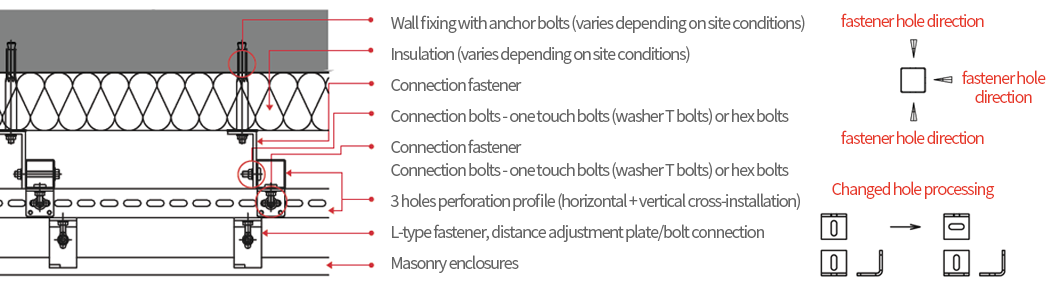

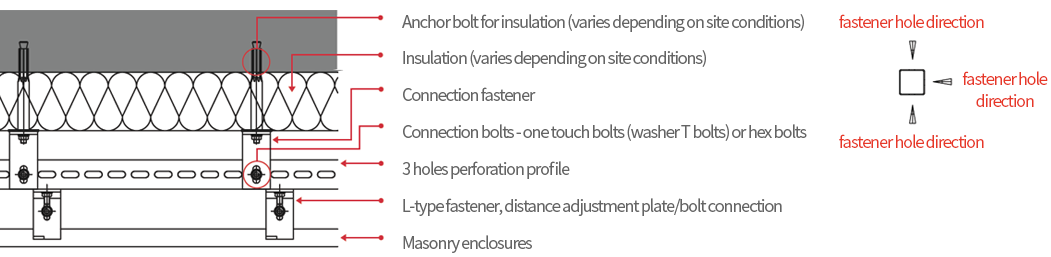

Sectional View
Sectional View
Front and
side views
Front and side views

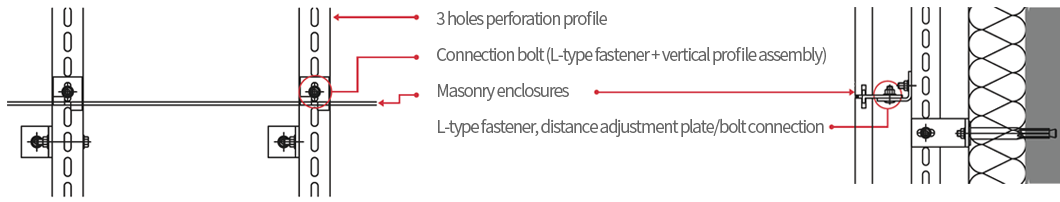

When fixing masonry enclosure to one vertical profile

Sectional View
Sectional View

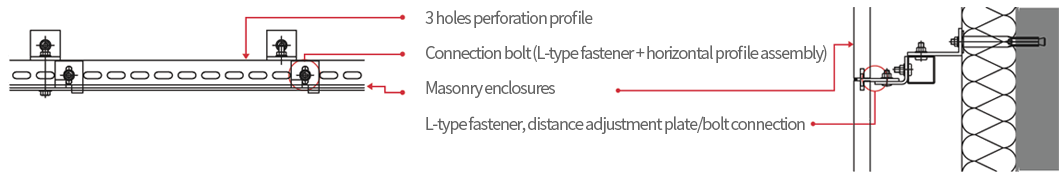

Front and
side views
Front and side views

When fixing the masonry enclosure to one horizontal profile

Sectional View
Sectional View
Front and
side views
Front and side views
